NeoLoch™  Inquisitor IC Testing System
Inquisitor Core Module

SRAM Blade

NeoLoch's new Inquisitor testing system expands on our previous designs. We took all the common components to our testers and wrapped them up in the “Core” module and added a card edge socket. All the specific components were placed on a “Blade”. This new system allows us to create a much wider range of testing aids.

This interchangeable system allows the user to focus in on a group of testing aids. And allows us to respond to user desired tests with greater ease. NeoLoch's first blade is for static RAM with many blades planned for future release, these include a PIA blade, a 9060 DRAM blade, along with many other exciting blades planned for the future.

Inquisitor Testing System Features:

  • 2 x 16 character LCD display.
  • Sytem error LEDs
  • Bi-Color test status LED.
  • 2.1mm DC power jack..
  • 40 pin ZIF socket.
  • 5 Control Switches.
  • Onboard +12V and +5V voltage regulator.
  • 4 mounting holes.
  • Selectable regulated or unregulated +12V power source.
How to Order Your Kit
If you don't have an Inquisitor testing system then you'll need to buy a bundle:
  • Core and Blade bundles come with the core module and a single blade, these bundles do not include a power supply so you'll need to supply your own or you can purchase the power supply we offer at the bottom of this page.
  • The Super Bundle comes with the core module, the SRAM blade, the PIA blade, 4116 blade and the power supply. This is a good option if you need both blades and also require a power supply.

Super Bundle with Power Supply
This bundle includes:
  • Inquisitor Core Module
  • SRAM Blade (Static RAM blade)
  • PIA Blade
  • 4116 Blade
  • Wall Mount Power Supply - North America Plug
Kit Price................... $134.90
Assembled................ $184.90

Super Bundle Type:
Super Bundle without Power Supply
This bundle includes:
  • Inquisitor Core Module
  • SRAM Blade (Static RAM blade)
  • PIA Blade
  • 4116 Blade



Kit Price............... $126.80
Assembled............ $176.80

Super Bundle Type:
SRAM Blade
SRAM BladeThe static RAM blade tests the following static RAM: 2101, 5101, 2016, 2018, 2114, 6514, 9114, 2125, 2147, 2148, 2149, 2465, 6264, 4016, 6116, 6810, 7489*, 74189, M5M5189, 62256, W24257, W24512 *(Adapter Required for V1 MCU)
Blade Only
Kit ........................... $27.95
Assembled.................$37.95
Core & Blade Bundle
Kit Price................... $67.90
Assembled................ $97.90
SRAM Blade Kit Type:
SRAM Bundle Type:
Downloads
SRAM Blade Assembly Guide
SRAM BladeUser Manual V3
Core Assembly Guide
Core User Manual



6821 PIA & 6532 RIOT Blade
PIA BladeThis updated blade now supports 6532 RIOT, "Ram IO Timer", as well as the 6520 & 6821 PIA "Peripheral Interface Adapter" ICs. Testing of ICs is much faster thanks to a MCU running at 32 MHz (PIC16F1719) along with a simplified progress bar during the testing process. After the test is complete any errors detected can be displayed for further diagnosis.
Blade Only
Kit ........................... $28.95
Assembled.................$38.95
Core & Blade Bundle
Kit Price................... $68.90
Assembled................ $98.90
PIA Blade Kit Type:
PIA Bundle Type:
Downloads
  PIA Blade Assembly Guide
  PIA BladeUser Manual V3
Core Assembly Guide
Core User Manual
4116 DRAM Blade
4116 BladeThe 4116 DRAM blade uses our custome designed testing algorithm to provide accurate and fast testing of the following DRAM types: 4116 / 9016 / D416 4027 / 4096.
Blade Only
Kit Price............... $34.95
Assembled............ $44.95
Core & Blade Bundle
Kit Price............... $74.90
Assembled............ $104.90
4116 Blade Kit Type:
4116 Blade Bundle Type:
Downloads
4116 Assembly Guide
4116 User Manual V1
4116 User Manual V2
Core Assembly Guide
Core User Manual

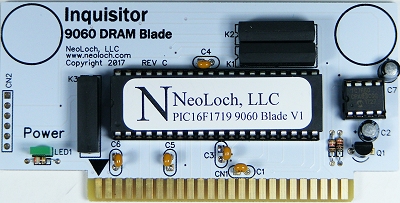

9060 DRAM Blade

Coming Soon




Blade Only
Kit Price.............. $34.95
Assembled........... $44.95
Core & Blade Bundle
Kit Price.................... $74.90
Assembled................. $104.90


Downloads
9060 Assembly Guide
9060 User Manual V1

Core Assembly Guide
Core User Manual





Inquisitor Individual Components
Inquisitor Core
Downloads:
Core Assembly Guide
Core User Manual

Kit ........................... $39.95
Assembled.................$59.95
Core Kit Type:
SRAM V3.01 MCU
Updates the MCU for the SRAM blade to the new PIC16F1719 version which eliminates the need for the 7489 adapter and adds a number of new features..

$4.95
PIA/RIOT V2.01 MCU
Updates the MCU for the PIA blade to the new PIC16F1719 version which adds a lot of features along with 6532 RIOT support.


$4.95
4116 V2.01 MCU
Updates the MCU for the 4116 blade to the newest version which corrects some bugs (see manual for details.)



$4.95
12V Power Supply
2.1mm North America type wall  mount power supply. Regulated 12V, 229 ma and short circuit protection.

$9.85
